%matplotlib inline
from d2l import torch as d2l
import gymnasium as gym
import numpy as np14.1 Markov Decision Processes
A Markov decision process (MDP) provides a mathematical model of sequential interaction (Bellman 1957; Puterman 1994). It consists of states, actions, transition probabilities, and rewards, together with the Markov assumption that the current state contains the information needed to predict the next state. This section develops these components using a sixteen-state FrozenLake environment.
We first inspect the simulator’s transition data and then express the same model in notation. The transition dynamics describe the environment, whereas the reward specifies the objective. A final example shows how an apparently reasonable reward modification can change the optimal policy in an unintended way.
%matplotlib inline
from d2l import jax as d2l
import gymnasium as gym
import numpy as np14.1.1 The Model

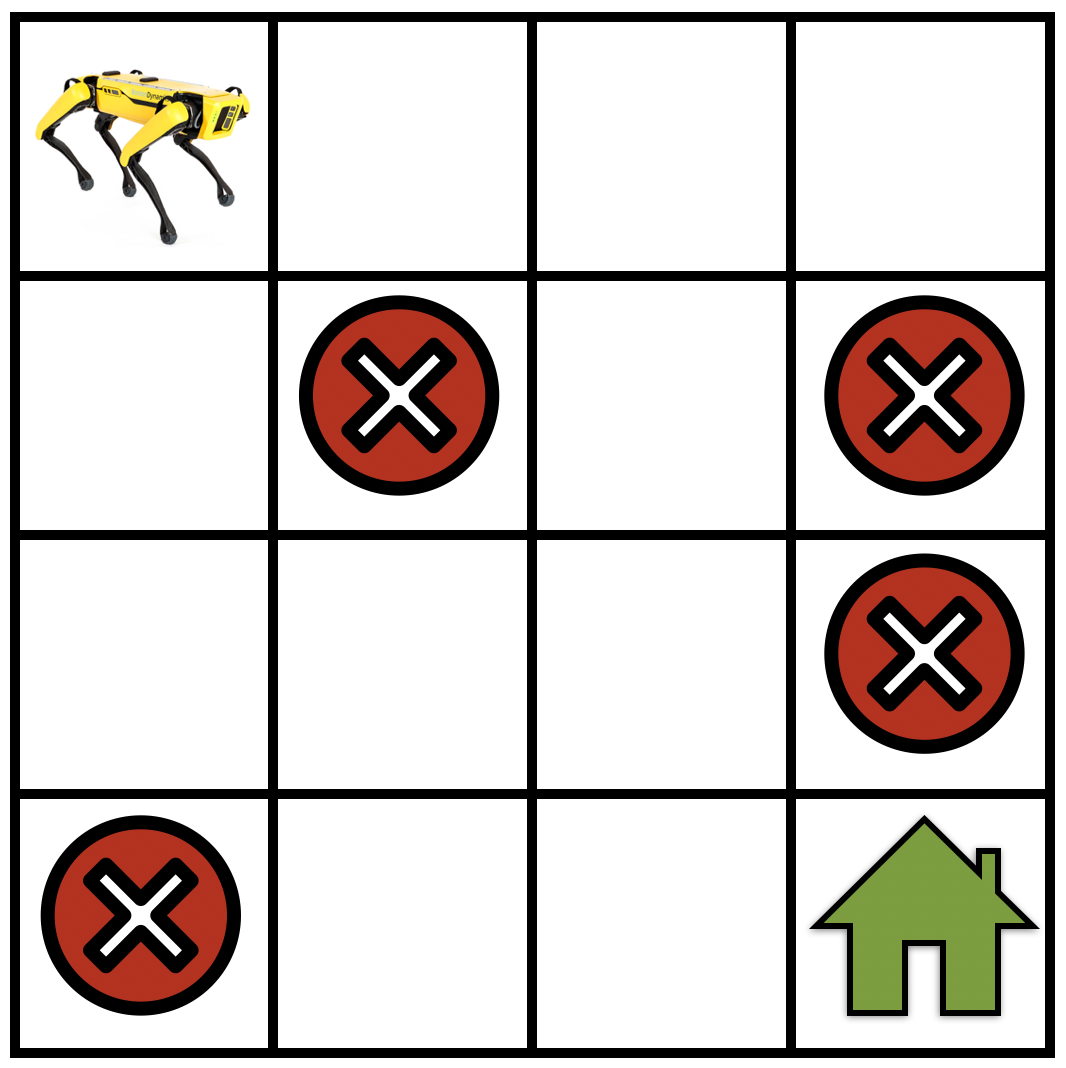

Figure 14.1.1 shows the environment used in the next four sections: FrozenLake from the Gymnasium suite (Towers et al. 2024). The agent starts at the top-left cell and seeks the goal at the bottom right, which gives reward one. Four cells are holes, and reaching either a hole or the goal ends the episode. On slippery ice, a commanded move occurs with probability \(1/3\); each of the two perpendicular moves also occurs with probability \(1/3\).
14.1.1.1 States, Actions and the Transition Kernel
Here the set of states \(\mathcal{S}\) consists of the agent’s cell, \(\{0, 1, \ldots, 15\}\) numbered row by row. The set of actions \(\mathcal{A}\) contains the four commands left, down, right, and up, encoded as 0 through 3. On slippery ice, an action determines a distribution over next states. Gymnasium stores this transition model as a table:
env = gym.make('FrozenLake-v1', is_slippery=True)
env.unwrapped.P[9][1][(0.33333333333333337, 8, 0, False),
(0.3333333333333333, 13, 0, False),
(0.33333333333333337, 10, 0, False)]env = gym.make('FrozenLake-v1', is_slippery=True)
env.unwrapped.P[9][1][(0.33333333333333337, 8, 0, False),
(0.3333333333333333, 13, 0, False),
(0.33333333333333337, 10, 0, False)]The output contains three tuples, one per outcome, each of the form (probability, next state, reward, terminated). When commanded down from state 9, the agent reaches 13, 8, or 10 with probability \(1/3\) each, as shown in Figure 14.1.1. In symbols this is the transition kernel \(P: \mathcal{S} \times \mathcal{A} \times \mathcal{S} \to [0, 1]\), where \(P(s' \mid s, a)\) is the conditional probability of reaching state \(s'\) from state \(s\) under action \(a\); each row is a distribution, so \(\sum_{s' \in \mathcal{S}} P(s' \mid s, a) = 1\).
The fourth object is the reward \(r: \mathcal{S} \times \mathcal{A} \to \mathbb{R}\), which assigns a numerical objective to taking action \(a\) at state \(s\). Together:
\[ \textrm{MDP}: \quad (\mathcal{S}, \mathcal{A}, P, r). \tag{14.1.1}\]
Some treatments fold the discount factor of the next subsection into this tuple, and some let the reward be random or depend on the next state; our \(r(s, a)\) then plays the role of the expected reward, and nothing in this chapter loses generality from the simpler form.
The transition and reward model fits in two dense arrays. We wrap them in a class and save it to the d2l library for use throughout the chapter:
class TabularMDP:
"""A finite MDP as dense arrays: P[s, a, s'] and r[s, a]."""
def __init__(self, P, r, gamma):
self.P, self.r, self.gamma = P, r, gamma
self.num_states, self.num_actions = r.shape
@classmethod
def from_gym(cls, env, gamma):
"""Read the transition table Gymnasium exposes as env.unwrapped.P."""
n_s, n_a = env.observation_space.n, env.action_space.n
P, r = np.zeros((n_s, n_a, n_s)), np.zeros((n_s, n_a))
for s, actions in env.unwrapped.P.items():
for a, outcomes in actions.items():
for p, s_next, reward, _ in outcomes:
P[s, a, s_next] += p # several outcomes may share s'
r[s, a] += p * reward # r(s,a) is the expected reward
return cls(P, r, gamma)
def backup(self, V):
"""Q(s, a) = r(s, a) + gamma * sum_{s'} P(s'|s, a) V(s')."""
return self.r + self.gamma * self.P @ Vclass TabularMDP:
"""A finite MDP as dense arrays: P[s, a, s'] and r[s, a]."""
def __init__(self, P, r, gamma):
self.P, self.r, self.gamma = P, r, gamma
self.num_states, self.num_actions = r.shape
@classmethod
def from_gym(cls, env, gamma):
"""Read the transition table Gymnasium exposes as env.unwrapped.P."""
n_s, n_a = env.observation_space.n, env.action_space.n
P, r = np.zeros((n_s, n_a, n_s)), np.zeros((n_s, n_a))
for s, actions in env.unwrapped.P.items():
for a, outcomes in actions.items():
for p, s_next, reward, _ in outcomes:
P[s, a, s_next] += p # several outcomes may share s'
r[s, a] += p * reward # r(s,a) is the expected reward
return cls(P, r, gamma)
def backup(self, V):
"""Q(s, a) = r(s, a) + gamma * sum_{s'} P(s'|s, a) V(s')."""
return self.r + self.gamma * self.P @ VIn backup, numpy’s matrix product contracts the last axis of \(P\) against a value estimate \(V\): reward plus discounted lookahead for every state-action pair, in one line. Section 14.2 builds this chapter’s first algorithm by repeating it.
gamma = 0.95
LEFT, DOWN, RIGHT, UP = 0, 1, 2, 3
mdp = TabularMDP.from_gym(env, gamma)
print(mdp.P[9, DOWN])[0. 0. 0. 0. 0. 0.
0. 0. 0.33333333 0. 0.33333333 0.
0. 0.33333333 0. 0. ]gamma = 0.95
LEFT, DOWN, RIGHT, UP = 0, 1, 2, 3
mdp = TabularMDP.from_gym(env, gamma)
print(mdp.P[9, DOWN])[0. 0. 0. 0. 0. 0.
0. 0. 0.33333333 0. 0.33333333 0.
0. 0.33333333 0. 0. ]The dictionary of tuples has become a dense row: probability \(1/3\) in columns 8, 10 and 13, zero elsewhere. Two consistency checks, one per array:
print(f'largest |row sum - 1|: {np.abs(mdp.P.sum(axis=-1) - 1).max():.1e}')
for s, a in np.argwhere(mdp.r > 0):
print(f'r(s={s}, a={"<v>^"[a]}) = {mdp.r[s, a]:.3f}')largest |row sum - 1|: 0.0e+00
r(s=14, a=v) = 0.333
r(s=14, a=>) = 0.333
r(s=14, a=^) = 0.333print(f'largest |row sum - 1|: {np.abs(mdp.P.sum(axis=-1) - 1).max():.1e}')
for s, a in np.argwhere(mdp.r > 0):
print(f'r(s={s}, a={"<v>^"[a]}) = {mdp.r[s, a]:.3f}')largest |row sum - 1|: 0.0e+00
r(s=14, a=v) = 0.333
r(s=14, a=>) = 0.333
r(s=14, a=^) = 0.333Every row of \(P\) sums to one. The reward array is almost entirely zero: its nonzero entries occur at state 14, the only cell from which the goal can be entered, and equal \(1/3\) because the corresponding action reaches the goal with that probability. FrozenLake therefore provides reward only on transitions into the goal.
14.1.1.2 Reward Design and Potential-Based Shaping
The reward is chosen by the designer to represent the task. In contrast, the states, actions, and transition kernel describe the environment. An optimization algorithm maximizes the specified reward, so a mismatch between the reward and the intended task can produce undesirable behavior.
One reward modification provably preserves the optimal policy. Let \(\Phi: \mathcal{S} \to \mathbb{R}\) be a potential that is zero at every terminal state, and replace the reward on each transition by
\[\tilde r(s, a, s') = r(s, a) + \gamma \Phi(s') - \Phi(s).\]
Along a trajectory, the shaping terms telescope to \(\gamma^T \Phi(s_T)-\Phi(s_0)\). The first term vanishes for an infinite discounted trajectory or for an episode ending at a state with \(\Phi(s_T)=0\). Every policy’s return then changes by the same constant \(-\Phi(s_0)\), so the optimal policy is unchanged (Ng et al. 1999). This construction is called potential-based shaping.
The terminal-state condition is essential. If returns stop at the terminal transition and \(\Phi(s_T)\) is unconstrained, the remaining term \(\gamma^T\Phi(s_T)\) can depend on the terminal state and duration, thereby changing the optimum. Equivalently, one may retain an unconstrained terminal potential if the return includes an absorbing continuation that cancels the residual. General bonuses need not preserve the optimal policy; the example at the end of the section demonstrates such a failure. Section 15.3 discusses explicit constraints, and Section 15.7 returns to reward misspecification at larger scale.
14.1.2 Return, Discount and Horizon
The start-state distribution and return objective complete the problem specification. The agent starts at a state \(s_0\) drawn from a start-state distribution \(\mu_0\) (a point mass on state 0 here; the distribution over prompts in Section 15.7) and produces a trajectory
\[\tau = (s_0, a_0, r_0, s_1, a_1, r_1, s_2, a_2, r_2, \ldots), \tag{14.1.2}\]
where at each step \(t\) it is at state \(s_t\), takes action \(a_t\), receives reward \(r_t = r(s_t, a_t)\), and moves to \(s_{t+1} \sim P(\cdot \mid s_t, a_t)\). The return of a trajectory is the total reward collected along it,
\[R(\tau) = r_0 + r_1 + r_2 + \cdots. \tag{14.1.3}\]
The goal of reinforcement learning is to act so that the return is as large as possible, on average over the randomness of the kernel, the start state and the agent’s own choices. For finite discounted MDPs the problem is well posed: an optimal way of acting exists and can be taken deterministic and time-independent (Puterman 1994).
We make this precise with policies and value functions in Section 14.2; the same objects define imitation from demonstrations (Section 14.3) and direct policy improvement from sampled returns (Section 14.5). The following uniformly random policy produces one example trajectory \(\tau\):
rng = np.random.default_rng(8)
s, _ = env.reset(seed=8)
terminated = truncated = False
ret, t = 0.0, 0
while not (terminated or truncated):
a = int(rng.integers(4))
s_next, r, terminated, truncated, _ = env.step(a)
print(f't={t:>2} s={s:>2} a={"<v>^"[a]} r={r:.0f}')
ret, s, t = ret + r, s_next, t + 1
print(f'terminated={terminated}, truncated={truncated}, return={ret:.0f}')t= 0 s= 0 a=> r=0
t= 1 s= 0 a=v r=0
t= 2 s= 0 a=< r=0
t= 3 s= 4 a=^ r=0
t= 4 s= 4 a=< r=0
t= 5 s= 4 a=v r=0
t= 6 s= 8 a=> r=0
t= 7 s= 9 a=^ r=0
t= 8 s=10 a=> r=0
terminated=True, truncated=False, return=0rng = np.random.default_rng(8)
s, _ = env.reset(seed=8)
terminated = truncated = False
ret, t = 0.0, 0
while not (terminated or truncated):
a = int(rng.integers(4))
s_next, r, terminated, truncated, _ = env.step(a)
print(f't={t:>2} s={s:>2} a={"<v>^"[a]} r={r:.0f}')
ret, s, t = ret + r, s_next, t + 1
print(f'terminated={terminated}, truncated={truncated}, return={ret:.0f}')t= 0 s= 0 a=> r=0
t= 1 s= 0 a=v r=0
t= 2 s= 0 a=< r=0
t= 3 s= 4 a=^ r=0
t= 4 s= 4 a=< r=0
t= 5 s= 4 a=v r=0
t= 6 s= 8 a=> r=0
t= 7 s= 9 a=^ r=0
t= 8 s=10 a=> r=0
terminated=True, truncated=False, return=0In the transcript, the agent commands right at \(t=0\) but remains in place. At \(t=2\), it commands left and instead moves down to state 4. At \(t=8\), it commands right from state 10 and enters the hole at state 11. These outcomes illustrate the stochastic transition kernel in Figure 14.1.1. Because the agent never reaches the goal, every reward and the total return are zero.
14.1.2.1 The Geometric Bound and the Effective Horizon
An agent that wanders forever without reaching a hole or the goal has an infinitely long trajectory, and with positive rewards along the way the sum \(R(\tau)\) could grow without bound. To keep the objective meaningful we introduce a discount factor \(0 \leq \gamma < 1\) and use the discounted return
\[R(\tau) = r_0 + \gamma r_1 + \gamma^2 r_2 + \cdots = \sum_{t=0}^\infty \gamma^t r_t. \tag{14.1.4}\]
If rewards are bounded by \(|r_t|\leq r_{\max}\), discounting makes the infinite return finite and gives a geometric bound on its tail:
\[|R(\tau)| \leq \frac{r_{\max}}{1 - \gamma}, \qquad \Big| \sum_{t \geq k} \gamma^t r_t \Big| \leq \frac{\gamma^k \, r_{\max}}{1 - \gamma}. \tag{14.1.5}\]
The first bound makes the objective finite. The second motivates the effective horizon \(1/(1-\gamma)\). For a constant reward stream, the fraction of discounted mass after step \(k\) is \(\gamma^k\); hence 95 percent lies within \(\log(0.05)/\log(\gamma)\) steps, approximately three effective horizons. For example, the effective horizons for \(\gamma=0.5\) and \(\gamma=0.99\) are two and one hundred steps, respectively.
print(f'{"gamma":>6} {"horizon 1/(1-gamma)":>20} {"t: gamma^t < 0.05":>18}')
for g in [0.5, 0.9, 0.95, 0.99]:
t5 = int(np.ceil(np.log(0.05) / np.log(g)))
print(f'{g:>6} {1 / (1 - g):>20.0f} {t5:>18}') gamma horizon 1/(1-gamma) t: gamma^t < 0.05
0.5 2 5
0.9 10 29
0.95 20 59
0.99 100 299print(f'{"gamma":>6} {"horizon 1/(1-gamma)":>20} {"t: gamma^t < 0.05":>18}')
for g in [0.5, 0.9, 0.95, 0.99]:
t5 = int(np.ceil(np.log(0.05) / np.log(g)))
print(f'{g:>6} {1 / (1 - g):>20.0f} {t5:>18}') gamma horizon 1/(1-gamma) t: gamma^t < 0.05
0.5 2 5
0.9 10 29
0.95 20 59
0.99 100 299Figure 14.1.2 shows these quantities. The shortest path in FrozenLake takes six moves, so the terminal reward receives weight \(\gamma^5\): approximately \(0.03\) for \(\gamma=0.5\) and \(0.77\) for \(\gamma=0.95\). The discount factor therefore determines the relative importance of delayed rewards.
14.1.2.2 Episodes, Termination and Truncation
A state that ends the process is terminal. For analysis it may be represented as an absorbing state whose actions return to itself with zero reward. FrozenLake stores holes and the goal in this form, although the simulator ends the episode and requires a reset. A trajectory from the start to a terminal state is an episode. In an episodic task with at most \(T\) steps, bounded rewards have a finite undiscounted sum and \(\gamma=1\) is permitted. Continuing tasks instead rely on discounting or another average-reward formulation.
Gymnasium distinguishes termination from truncation. terminated=True means that the process reached a terminal state and has zero continuation value. truncated=True means that observation stopped, usually because of a time limit, although the state can have nonzero continuation value. Either flag may stop an interaction loop, but only termination should set a bootstrapped target’s continuation to zero. The learning algorithms beginning in Section 14.4 therefore mask targets with terminated alone.
14.1.3 The Choice of State
The kernel \(P(s' \mid s,a)\) conditions only on the current state and action. This is the Markov assumption: once the present state is known, the history provides no additional information for predicting the next state. Whether the assumption holds depends on how the state is defined.
14.1.3.1 The Markov Assumption and State Augmentation
Suppose the recorded state \(s_t\) is a vehicle’s location and the action \(a_t\) is its acceleration. The next location also depends on the current velocity, which cannot generally be recovered from the current location alone. If velocity is inferred from successive locations, the dynamics have the form
\[s_{t+1} = f(s_t, a_t, s_{t-1}); \tag{14.1.6}\]
and the location by itself is not Markov.
The problem is resolved by defining the state as \((\textrm{location},\textrm{velocity})\). Newtonian dynamics then determine the distribution of the next location and velocity from the current pair and the applied acceleration. Thus the Markov property is a condition on the representation of state, not only on the physical system.
This construction is called state augmentation: the state is enlarged until it contains the information needed to predict the future. Augmentation increases the state-space dimension, and the required sufficient statistic may be unknown, too large to store, or unobservable. The unobservable case leads to partial observability and belief states.
14.1.3.2 Partial Observability
State augmentation requires the added variables to be observable. A poker player, for example, cannot observe the opponents’ cards. When an agent receives an observation \(o_t\) that reveals only part of the state, the problem is a partially observable MDP. Exact methods then maintain beliefs over the hidden state. A common approximation augments the observation with a short history. In Atari, a single frame gives position but not velocity, whereas several consecutive frames reveal motion. The remainder of this chapter assumes that the observation is a Markov state.
14.1.4 Bandits, Degenerate MDPs and the Model-Based Axis
Two special cases and the distinction between model-based and model-free methods organize the following sections.
14.1.4.1 The Bandit as a One-State MDP
When \(|\mathcal{S}|=1\), each round consists of selecting an action and observing a reward. This is a multi-armed bandit. There are no state transitions or delayed rewards, so the problem isolates the exploration required to identify the action with the largest expected reward. Section 14.4 uses this setting to compare exploration strategies.
14.1.4.2 The Degenerate MDP: Deterministic Transitions, Terminal Reward
Another special case has deterministic transitions and reward only at termination. FrozenLake has terminal-only reward, and disabling its slippery dynamics makes the transitions deterministic as well. Text generation has this structure when appending a token deterministically updates the context and a verifier or reward model assigns a score to the completed sequence. Section 15.7 develops this formulation.
14.1.4.3 Model-Based versus Model-Free Methods
The computations above use the transition and reward model directly. Algorithms that plan with a known or learned model are model-based; value iteration in Section 14.2 is an example. Model-free algorithms instead use sampled transitions \((s,a,r,s')\), as in Section 14.4. A model can be evaluated at any state-action pair, whereas samples are available only for pairs visited by the data-collection policy.
Because the original reward is sparse, one might add a bonus of \(0.3\) whenever a transition moves closer to the goal. In expectation this gives \(\tilde r(s,a)=r(s,a)+0.3\sum_{s'}P(s'\mid s,a)\mathbf{1}(d(s')<d(s))\), where \(d\) is Manhattan distance. This modification is not potential based: movement toward the goal receives a bonus, whereas movement away incurs no corresponding penalty. We compute its optimal policy by repeated backups and evaluate both policies under the original reward using exact policy evaluation:
dist = abs(np.arange(16) // 4 - 3) + abs(np.arange(16) % 4 - 3)
closer = dist < dist[:, None, None] # closer[s, :, s'] = 1 iff d(s') < d(s)
shaped = TabularMDP(mdp.P, mdp.r + 0.3 * (mdp.P * closer).sum(-1), gamma)
def greedy_sweeps(m): # repeated backups; named in next section
V = np.zeros(m.num_states)
for _ in range(500):
V = m.backup(V).max(axis=1)
return m.backup(V).argmax(axis=1), V
def exact_value(pi, s=0): # V(s) under the true reward, exactly
i = np.arange(mdp.num_states)
return np.linalg.solve(np.eye(16) - gamma * mdp.P[i, pi], mdp.r[i, pi])[s]
pi_shaped, V_shaped = greedy_sweeps(shaped)
pi_true, V_true = greedy_sweeps(mdp)
print(f'shaped-optimal: at s=14 goes {"<v>^"[pi_shaped[14]]}, shaped value '
f'{V_shaped[0]:.2f}, true value {exact_value(pi_shaped):.3f}')
print(f'true-optimal: at s=14 goes {"<v>^"[pi_true[14]]}, true value '
f'{exact_value(pi_true):.3f}')shaped-optimal: at s=14 goes <, shaped value 2.15, true value 0.000
true-optimal: at s=14 goes v, true value 0.180dist = abs(np.arange(16) // 4 - 3) + abs(np.arange(16) % 4 - 3)
closer = dist < dist[:, None, None] # closer[s, :, s'] = 1 iff d(s') < d(s)
shaped = TabularMDP(mdp.P, mdp.r + 0.3 * (mdp.P * closer).sum(-1), gamma)
def greedy_sweeps(m): # repeated backups; named in next section
V = np.zeros(m.num_states)
for _ in range(500):
V = m.backup(V).max(axis=1)
return m.backup(V).argmax(axis=1), V
def exact_value(pi, s=0): # V(s) under the true reward, exactly
i = np.arange(mdp.num_states)
return np.linalg.solve(np.eye(16) - gamma * mdp.P[i, pi], mdp.r[i, pi])[s]
pi_shaped, V_shaped = greedy_sweeps(shaped)
pi_true, V_true = greedy_sweeps(mdp)
print(f'shaped-optimal: at s=14 goes {"<v>^"[pi_shaped[14]]}, shaped value '
f'{V_shaped[0]:.2f}, true value {exact_value(pi_shaped):.3f}')
print(f'true-optimal: at s=14 goes {"<v>^"[pi_true[14]]}, true value '
f'{exact_value(pi_true):.3f}')shaped-optimal: at s=14 goes <, shaped value 2.15, true value 0.000
true-optimal: at s=14 goes v, true value 0.180State 14 is the only cell from which the goal can be entered. The optimal policy for the original reward commands down, which reaches the goal with probability \(1/3\). The policy optimized for the shaped reward instead commands left, whose possible successors are states 10, 13, and 14. It therefore never reaches the goal.
Its value under the original reward is zero, although its value under the shaped reward is \(2.15\), compared with \(0.180\) for the original optimum. The per-step bonus favors continuing to collect approach rewards instead of terminating. With a smaller bonus of \(0.1\), the policy still reaches the goal but remains altered. Exercise 4 replaces the bonus with a potential-based reward.
14.1.5 Summary
A Markov decision process consists of states \(\mathcal{S}\), actions \(\mathcal{A}\), a transition kernel \(P\), and a reward \(r\). The Markov assumption requires the state to contain the information from the past needed to predict the future; state augmentation can restore this property when the necessary information is observable. The objective is expected discounted return, and \(1/(1-\gamma)\) provides a useful effective-horizon scale. Terminal states end the process, whereas truncation ends only the observation of it, so bootstrapped value estimates must distinguish the two.
A one-state MDP is a bandit, and a deterministic MDP with terminal reward describes settings such as text generation. Potential-based shaping preserves the optimal policy when its terminal conditions are handled correctly; arbitrary reward modifications do not.
Experimental scope. Except for the illustrative sampled trajectory, the results in this section are exact computations on a known sixteen-state model. The reward-shaping example establishes that one plausible bonus can change the optimal policy; it does not imply that all reward shaping fails. Estimation, exploration, and function approximation are introduced in later sections.
14.1.6 Exercises
- [conceptual] What the state must contain. A single frame of Pong shows where the ball is but not where it is going, so the frame alone is not a state in the sense of Section 14.1. Say precisely which property of Equation 14.1.1 fails, give the smallest augmentation of the frame that restores it, and explain why the standard practice of stacking four frames is more than the minimum. Then do the same for MountainCar: name its state and action sets, and say what the environment would have to report instead for the position alone to be Markov.
- [short-code] Look at a transition function. Build the slippery FrozenLake MDP with
mdp = d2l.TabularMDP.from_gym(gym.make('FrozenLake-v1', is_slippery=True), gamma). Verify that every row ofmdp.Psums to one, and count how many state-action pairs have more than one possible successor. Repeat withis_slippery=False. How many numbers does the deterministic MDP need, and how many does the slippery one need? - [short-code] The effective horizon. Rewards in this book are bounded by some \(r_{\max}\). Show that the tail of the discounted return past step \(k\) is at most \(\gamma^k r_{\max} / (1 - \gamma)\), and find, for \(\gamma \in \{0.9, 0.95, 0.99, 0.999\}\), the smallest \(k\) at which that tail is below one percent of the maximum possible return. Plot \(k\) against \(1/(1-\gamma)\). Our gridworld’s optimal path is six steps long: which of these discount factors can even see the goal?
- [conceptual] Reward design and its failure. The gridworld gives reward \(1\) at the goal and nothing elsewhere, which makes learning slow. The section’s shaped reward gives a bonus for moving closer to the goal, and the policy it makes optimal never reached the goal at all. Consider the closely related two-sided form \(r(s, a) = d(s) - d(s')\) with \(d\) the Manhattan distance. Show that on a map with a wall this too can make a policy that never reaches the goal earn more than one that does. Then show that the potential-based form \(r(s,a) + \gamma \Phi(s') - \Phi(s)\) leaves the optimal policy unchanged for any function \(\Phi\) with \(\Phi = 0\) at terminal states: write out the telescoping sum for an episode of length \(T\), exhibit the residual \(\gamma^T \Phi(s_T)\) that survives at the endpoint, and give the two ways to eliminate it (the zero boundary condition, or continuing the shaped reward through the absorbing state). Finally, identify what goes wrong with the naive fixes in that language.
- [conceptual] Random rewards. Section 14.1 notes that a random reward can be folded into \(r(s,a)\) by taking its mean. Make this precise: let the reward at \((s,a)\) be a random variable \(R\) with \(E[R] = r(s,a)\), drawn independently at each visit. Show that the value function of every policy is unchanged. Where, then, does the randomness of \(R\) show up at all?
- [conceptual] Which problems are not MDPs. For each of the following, say whether it is an MDP under the obvious choice of state, and if not, what to add: a poker hand; a robot whose battery drains; a recommender that a user grows tired of; a chess position with the fifty-move rule.
