Introduction

Most conventional computer programs implement rules written by developers. Consider an application for managing an e-commerce platform. Users interact with a web or mobile interface; the application stores accounts and transactions in a database; and its business logic maps specified events to actions.

Developers can enumerate common events and define the required response. When a customer adds an item to a shopping cart, for example, the program records the user and product identifiers. Tests expose corner cases, such as a request to purchase an empty cart, and the rules can be amended before deployment. When explicit rules can cover the relevant cases and work \(100\%\) of the time, machine learning is usually unnecessary.

Many tasks resist this rule-based approach. Consider the following problems:

Writing explicit rules for these tasks is difficult. The relevant patterns may change over time, so a useful system must adapt. In other cases, the relation between inputs and outputs—between pixels and semantic categories, for example—is too intricate to specify as a sequence of hand-written rules. Humans recognize familiar objects without being able to articulate every step of the computation.

Machine learning studies algorithms whose behavior is determined from experience, usually observational data or interactions with an environment. Unlike fixed business logic, a trained model can change when it is supplied with new data and retrained. This book develops the fundamentals of machine learning with an emphasis on deep learning, which is widely used in computer vision, natural language processing, healthcare, genomics, and other fields.

A Motivating Example

Suppose that a driver says “Hey Siri” and then asks for directions to a coffee shop. The phone must detect the wake phrase, transcribe the request, identify its intent, find suitable routes, and estimate their travel times. This brief interaction can invoke several machine learning models.

Consider the task of responding to a wake word such as “Alexa”, “OK Google”, or “Hey Siri” (Figure). A microphone collects roughly 44,000 amplitude measurements each second. It is difficult to write explicit rules that map a segment of these raw samples reliably to \(\{\textrm{yes}, \textrm{no}\}\) according to whether it contains the wake word. Machine learning offers a different way to construct this mapping.

Figure: Identify a wake word.

Although we cannot state the recognition rules, we can label examples by listening to them. We therefore collect a dataset of audio segments together with labels that indicate which segments contain the wake word. Rather than encode the recognition procedure explicitly, we define a flexible program whose behavior depends on numerical parameters. The data determine parameter values that perform well according to a chosen measure.

Parameters control the program’s behavior. Once their values are fixed, the program is a model. The set of input–output mappings obtainable by varying the parameters is a family of models. A learning algorithm uses the dataset to select parameter values from that family.

Before applying the learning algorithm, we must specify the inputs, outputs, and model family. Here, the model receives an audio segment as input and selects an output from \(\{\textrm{yes}, \textrm{no}\}\).

An appropriate model family should contain a parameter setting that recognizes “Alexa” reliably. Because the exact choice of the wake word is arbitrary, we will probably need a model family sufficiently rich that, via another setting of the knobs, it could fire “yes” only upon hearing the word “Apricot”. We expect that the same model family should be suitable for “Alexa” recognition and “Apricot” recognition because they seem, intuitively, to be similar tasks. However, we might need a different family of models entirely if we want to deal with fundamentally different inputs or outputs, say if we wanted to map from images to captions, or from English sentences to Chinese sentences.

Random parameter values are unlikely to make the model recognize “Alexa”, “Apricot”, or any other English word. Learning is the process of selecting parameter values that produce the desired behavior; we train the model with data. A typical training process (Figure) proceeds as follows:

  1. Initialize the model parameters.
  2. Select some data (e.g., audio segments and corresponding \(\{\textrm{yes}, \textrm{no}\}\) labels).
  3. Adjust the parameters to improve the model’s performance on those examples.
  4. Repeat Steps 2 and 3 until a stopping criterion is met.
Figure: A typical training process.

Rather than specifying a wake-word recognizer as rules, we specify a program that can learn from a large labeled dataset. This process is sometimes called programming with data. For example, we can train a cat detector by providing many examples of cats and dogs. The detector may learn to emit a very large positive number if it is a cat, a very large negative number if it is a dog, and something closer to zero if it is not sure. Deep learning, developed in detail throughout this book, is one family of methods for solving machine learning problems.

Key Components

The wake-word example used audio segments and binary labels to train a model that maps each segment to a classification. This sort of problem, where we try to predict a designated unknown label based on known inputs given a dataset consisting of examples for which the labels are known, is called supervised learning. This is one of several kinds of machine learning problem. Across these kinds, four components recur:

  1. The data that we can learn from.
  2. A model of how to transform the data.
  3. An objective function that quantifies how well (or badly) the model is doing.
  4. An algorithm to adjust the model’s parameters to optimize the objective function.

Data

Machine learning datasets usually contain collections of examples. To process them, we need suitable numerical representations. Each example (or data point, data instance, sample) typically consists of a set of attributes called features (sometimes called covariates or inputs), based on which the model must make its predictions. In supervised learning problems, our goal is to predict the value of a special attribute, called the label (or target), that is not part of the model’s input.

If we were working with image data, each example might consist of an individual photograph (the features) and a number indicating the category to which the photograph belongs (the label). The photograph would be represented numerically as three grids of numerical values representing the brightness of red, green, and blue light at each pixel location. For example, a \(200\times 200\) pixel color photograph would consist of \(200\times200\times3=120000\) numerical values.

Alternatively, we might work with electronic health record data and tackle the task of predicting the likelihood that a given patient will survive the next 30 days. Here, our features might consist of a collection of readily available attributes and frequently recorded measurements, including age, vital signs, comorbidities, current medications, and recent procedures. The label available for training would be a binary value indicating whether each patient in the historical data survived within the 30-day window.

In such cases, when every example is characterized by the same number of numerical features, we say that the inputs are fixed-length vectors and we call the (constant) length of the vectors the dimensionality of the data. Fixed-length inputs simplify batching and model design, but not all data can readily be represented as fixed-length vectors. While we might expect microscope images to come from standard equipment, we cannot expect images mined from the Internet all to have the same resolution or shape. For images, we might consider cropping them to a standard size, but that strategy only gets us so far. We risk losing information in the cropped-out portions. Moreover, text data resists fixed-length representations even more stubbornly. Consider the customer reviews left on e-commerce sites such as Amazon, IMDb, and TripAdvisor. Some are short: “it stinks!”. Others ramble for pages. Many modern deep learning models can process varying-length data directly.

Additional representative data can support larger models and reduce reliance on strong prior assumptions. The transition from comparatively small datasets to large ones contributed substantially to the success of modern deep learning. Some deep models require large datasets to outperform traditional approaches; the relationship depends on the task, model, and quality of the data.

Quantity alone is insufficient; the data must also be relevant and reliable. If the data is full of mistakes, or if the chosen features are not predictive of the target quantity of interest, learning is going to fail. Poor predictive performance is not the only possible consequence. In sensitive applications of machine learning, like predictive policing, resume screening, and risk models used for lending, we must examine both data coverage and embedded bias. One common failure mode occurs when demographic groups are absent or poorly represented in the training data. A skin-cancer recognition system trained without examples from people with darker skin tones may fail for those patients. Data can also encode historical prejudice. For example, if past hiring decisions are used to train a predictive model that will be used to screen resumes then a model can reproduce and automate historical injustice without its developers intending or recognizing the effect.

Models

Most machine learning systems transform one representation into another. A system might process photographs and estimate whether each depicts a smile, or process sensor readings and assign an anomaly score. A model is the computational mechanism that maps input data to predictions. In particular, we are interested in statistical models that can be estimated from data. While simple models are perfectly capable of addressing appropriately simple problems, the problems that we focus on in this book stretch the limits of classical methods. Deep learning focuses on models that compose many successive transformations, hence the term deep. On our way to discussing deep models, we will also discuss some more traditional methods.

Objective Functions

Learning requires a quantitative definition of improvement. An objective function supplies this measure. We usually formulate objectives so that lower values are preferable; negating a score for which higher values are preferable produces an equivalent minimization objective. Objectives expressed in this form are often called loss functions.

When trying to predict numerical values, the most common loss function is squared error, i.e., the square of the difference between the prediction and the ground truth target. For classification, the most common objective is to minimize error rate, i.e., the fraction of examples on which our predictions disagree with the ground truth. Some objectives (e.g., squared error) can be optimized directly, whereas others (e.g., error rate) are difficult to optimize, owing to non-differentiability or other complications. In these cases, it is common instead to optimize a surrogate objective.

During optimization, we think of the loss as a function of the model’s parameters, and treat the training dataset as a constant. We learn the best values of our model’s parameters by minimizing the loss incurred on a set consisting of some number of examples collected for training. However, doing well on the training data does not guarantee that we will do well on unseen data. So we will typically want to split the available data into two partitions: the training dataset (or training set), for learning model parameters; and the test dataset (or test set), which is held out for evaluation. We typically report performance on both partitions. You could think of training performance as analogous to the scores that a student achieves on the practice exams used to prepare for some real final exam. Even if the results are encouraging, that does not guarantee success on the final exam. Over the course of studying, the student might begin to memorize the practice questions, appearing to master the topic but faltering when faced with previously unseen questions on the actual final exam. When a model performs well on the training set but fails to generalize to unseen data, we say that it is overfitting to the training data.

Optimization Algorithms

Given data, a model, and an objective function, we need an algorithm that searches for parameters that minimize the loss. Popular optimization algorithms for deep learning are based on an approach called gradient descent. At each step, gradient descent estimates how the training loss changes under a small change to each parameter, then updates the parameters in a direction that reduces the loss.

Kinds of Machine Learning Problems

Machine learning encompasses several problem formulations. The following overview establishes terminology used throughout the book.

Supervised Learning

Supervised learning describes tasks where we are given a dataset containing both features and labels and asked to produce a model that predicts the labels when given input features. Each feature–label pair is called an example. Sometimes, when the context is clear, we may use the term examples to refer to a collection of inputs, even when the corresponding labels are unknown. The supervision comes into play because, for choosing the parameters, we (the supervisors) provide the model with a dataset consisting of labeled examples. In probabilistic terms, we typically are interested in estimating the conditional probability of a label given input features. Among the several learning paradigms, supervised learning accounts for many successful applications of machine learning in industry. Partly that is because many important tasks can be described crisply as estimating the probability of something unknown given a particular set of available data:

  • Predict cancer vs. not cancer, given a computer tomography image.
  • Predict the correct translation in French, given a sentence in English.
  • Predict the price of a stock next month based on this month’s financial reporting data.

While all supervised learning problems are captured by the simple description “predicting the labels given input features”, supervised learning can take diverse forms and require many modeling decisions, depending on (among other considerations) the type, size, and quantity of the inputs and outputs. For example, we use different models for processing sequences of arbitrary lengths and fixed-length vector representations. We will visit many of these problems in depth throughout this book.

Informally, the learning process looks something like the following. First, grab a big collection of examples for which the features are known and select from them a random subset, acquiring the ground truth labels for each. Sometimes these labels might be available data that have already been collected (e.g., did a patient die within the following year?) and other times we might need to employ human annotators to label the data, (e.g., assigning images to categories). Together, these inputs and corresponding labels comprise the training set. We feed the training dataset into a supervised learning algorithm, a function that takes as input a dataset and outputs another function: the learned model. Finally, we can feed previously unseen inputs to the learned model, using its outputs as predictions of the corresponding label. The full process is drawn in Figure.

Figure: Supervised learning.

Regression

One common supervised learning task is regression. Consider, for example, a set of data harvested from a database of home sales. We might construct a table, in which each row corresponds to a different house, and each column corresponds to some relevant attribute, such as the square footage of a house, the number of bedrooms, the number of bathrooms, and the number of minutes (walking) to the center of town. In this dataset, each example would be a specific house, and the corresponding feature vector would be one row in the table. For a compact urban apartment, the (square footage, number of bedrooms, number of bathrooms, walking distance) feature vector might be \([600, 1, 1, 60]\); for a larger suburban house, it might be \([3000, 4, 3, 10]\). Many classical machine learning algorithms require fixed-length feature vectors of this kind.

What makes a problem a regression is actually the form of the target. Say that you are in the market for a new home. You might want to estimate the fair market value of a house, given some features such as above. The data here might consist of historical home listings and the labels might be the observed sales prices. When labels take on arbitrary numerical values (even within some interval), we call this a regression problem. The goal is to produce a model whose predictions closely approximate the actual label values.

Many practical problems can be formulated as regression. Predicting the rating that a user will assign to a movie can be thought of as a regression problem and if you designed a great algorithm to accomplish this feat in 2009, you might have won the 1-million-dollar Netflix prize. Predicting the length of stay for patients in the hospital is also a regression problem. A good rule of thumb is that any how much? or how many? problem is likely to be regression. For example:

  • How many hours will this surgery take?
  • How much rainfall will this town have in the next six hours?

Regression also arises in ordinary estimation. Suppose a contractor spent 3 hours removing gunk from your sewage pipes. Then they sent you a bill of 350 dollars. Suppose a second job took 2 hours and received a bill of 250 dollars. If someone then asked you how much to expect on their upcoming gunk-removal invoice you might make some reasonable assumptions, such as more hours worked costs more dollars. You might also assume that there is some base charge and that the contractor then charges per hour. If these assumptions held true, then given these two data examples, you could already identify the contractor’s pricing structure: 100 dollars per hour plus 50 dollars to show up at your house. This inference captures the central idea of linear regression.

In this case, we could produce the parameters that exactly matched the contractor’s prices. Sometimes this is not possible, e.g., if some of the variation arises from factors beyond your two features. In these cases, we will try to learn models that minimize the distance between our predictions and the observed values. In most of our chapters, we will focus on minimizing the squared error loss function. As shown later, this loss corresponds to the assumption that our data were corrupted by Gaussian noise.

Classification

While regression models are great for addressing how many? questions, lots of problems do not fit comfortably in this template. Consider, for example, a bank that wants to develop a check scanning feature for its mobile app. Ideally, the customer would photograph a check and the app would automatically recognize the text from the image. Assuming that we had some ability to segment out image patches corresponding to each handwritten character, then the primary remaining task would be to determine which character among some known set is depicted in each image patch. These kinds of which one? problems are called classification and require a different set of tools from those used for regression, although many techniques will carry over.

In classification, we want our model to look at features, e.g., the pixel values in an image, and then predict to which category (sometimes called a class) among some discrete set of options, an example belongs. For handwritten digits, we might have ten classes, corresponding to the digits 0 through 9. The simplest form of classification is when there are only two classes, a problem which we call binary classification. For example, our dataset could consist of images of animals and our labels might be the classes \(\textrm{\{cat, dog\}}\). Whereas in regression we sought a regressor to output a numerical value, in classification we seek a classifier, whose output is the predicted class assignment.

For reasons that we will get into as the book gets more technical, it can be difficult to optimize a model that can only output a firm categorical assignment, e.g., either “cat” or “dog”. In these cases, it is usually much easier to express our model in the language of probabilities. Given features of an example, our model assigns a probability to each possible class. Returning to our animal classification example where the classes are \(\textrm{\{cat, dog\}}\), a classifier might see an image and output the probability that the image is a cat as 0.9. We can interpret this number by saying that the classifier is 90% sure that the image depicts a cat. The magnitude of the probability for the predicted class conveys a notion of uncertainty. It is not the only one available and we will discuss others in chapters dealing with more advanced topics.

When we have more than two possible classes, we call the problem multiclass classification. Common examples include handwritten character recognition \(\textrm{\{0, 1, 2, ... 9, a, b, c, ...\}}\). While we attacked regression problems by trying to minimize the squared error loss function, the common loss function for classification problems is called cross-entropy, whose name will be demystified when we introduce information theory in later chapters.

The most likely class need not determine the action. Assume that you find a beautiful mushroom in your backyard as shown in Figure.

Figure: Death cap—do not eat!

Now, assume that you built a classifier and trained it to predict whether a mushroom is poisonous based on a photograph. Say our poison-detection classifier outputs that the probability that Figure shows a death cap is 0.2. In other words, the classifier is 80% sure that our mushroom is not a death cap. Eating it would still be unwise: the possible benefit of a meal does not justify a 20% risk of death. In other words, the effect of the uncertain risk outweighs the benefit by far. Thus, in order to make a decision about whether to eat the mushroom, we need to compute the expected detriment associated with each action which depends both on the likely outcomes and the benefits or harms associated with each. In this case, the detriment incurred by eating the mushroom might be \(0.2 \times \infty + 0.8 \times 0 = \infty\), whereas the loss of discarding it is \(0.2 \times 0 + 0.8 \times 1 = 0.8\). Our caution was justified: as any mycologist would tell us, the mushroom in Figure is actually a death cap.

Classification also includes formulations beyond ordinary binary and multiclass classification. For instance, there are some variants of classification addressing hierarchically structured classes. In such cases not all errors are equal—if we must err, we might prefer to misclassify to a related class rather than a distant class. Usually, this is referred to as hierarchical classification. For inspiration, you might think of Linnaeus, who organized fauna in a hierarchy.

In the case of animal classification, it might not be so bad to mistake a poodle for a schnauzer, but our model would pay a huge penalty if it confused a poodle with a dinosaur. Which hierarchy is relevant might depend on how you plan to use the model. For example, rattlesnakes and garter snakes might be close on the phylogenetic tree, but mistaking a rattler for a garter could have fatal consequences.

Tagging

Some classification problems fit neatly into the binary or multiclass classification setups. For example, we could train a normal binary classifier to distinguish cats from dogs. Current computer vision libraries provide off-the-shelf tools for this task. Nonetheless, no matter how accurate our model gets, we might find ourselves in trouble when the classifier encounters an image of the Town Musicians of Bremen, a popular German fairy tale featuring four animals (Figure).

Figure: A donkey, a dog, a cat, and a rooster.

The image contains a cat, a rooster, a dog, and a donkey, with some trees in the background. If we anticipate encountering such images, multiclass classification might not be the right problem formulation. Instead, we might want to give the model the option of saying the image depicts a cat, a dog, a donkey, and a rooster.

The problem of learning to predict classes that are not mutually exclusive is called multi-label classification. Auto-tagging problems are typically best described in terms of multi-label classification. Think of the tags people might apply to posts on a technical blog, e.g., “machine learning”, “technology”, “gadgets”, “programming languages”, “Linux”, “cloud computing”, “AWS”. A typical article might have 5–10 tags applied. Typically, tags will exhibit some correlation structure. Posts about “cloud computing” are likely to mention “AWS” and posts about “machine learning” are likely to mention “GPUs”.

Sometimes such tagging problems draw on enormous label sets. The National Library of Medicine employs many professional annotators who associate each article to be indexed in PubMed with a set of tags drawn from the Medical Subject Headings (MeSH) ontology, a collection of roughly 28,000 tags. Correctly tagging articles is important because it allows researchers to conduct exhaustive reviews of the literature. This is a time-consuming process and typically there is a one-year lag between archiving and tagging. Machine learning can provide provisional tags until each article has a proper manual review. Indeed, for several years, the BioASQ organization has hosted competitions for this task.

Recommender Systems

Recommender systems are another problem setting that is related to search and ranking. The problems are similar insofar as the goal is to display a set of items relevant to the user. The main difference is the emphasis on personalization to specific users in the context of recommender systems. For instance, for movie recommendations, the results page for a science fiction fan and the results page for a connoisseur of Peter Sellers comedies might differ significantly. Similar problems pop up in other recommendation settings, e.g., for retail products, music, and news recommendation.

In some cases, customers provide explicit feedback, communicating how much they liked a particular product (e.g., the product ratings and reviews on Amazon, IMDb, or Goodreads). In other cases, they provide implicit feedback, e.g., by skipping titles on a playlist, which might indicate dissatisfaction or that the song was inappropriate in that context. In the simplest formulations, these systems are trained to estimate some score, such as an expected star rating or the probability that a given user will purchase a particular item.

Given such a model, for any given user, we could retrieve the set of objects with the largest scores, which could then be recommended to the user. Production systems are considerably more advanced and take detailed user activity and item characteristics into account when computing such scores. Figure displays the deep learning books recommended by Amazon based on personalization algorithms tuned to capture Aston’s preferences.

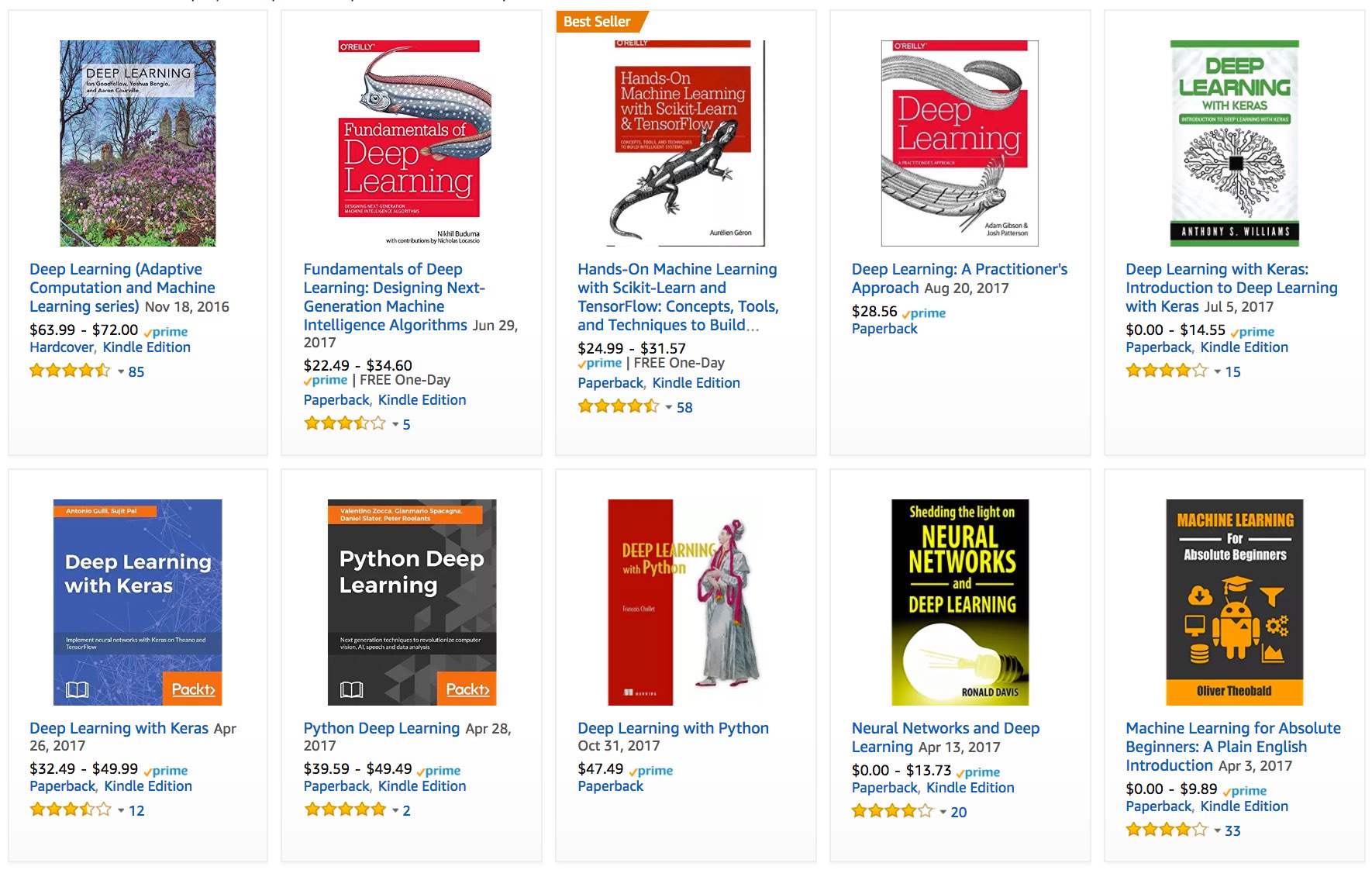

Figure: Deep learning books recommended by Amazon.

Despite their economic value, recommender systems built directly from predictive models face several conceptual problems. First, they observe only censored feedback: users preferentially rate movies that they feel strongly about. For example, on a five-point scale, items may receive many one- and five-star ratings but that there are conspicuously few three-star ratings. Moreover, current purchase habits are often a result of the recommendation algorithm currently in place, but learning algorithms do not always take this detail into account. Thus it is possible for feedback loops to form where a recommender system preferentially pushes an item that is then taken to be better (due to greater purchases) and in turn is recommended even more frequently. Many of these problems—about how to deal with censoring, incentives, and feedback loops—are important open research questions.

Sequence Learning

So far, we have looked at problems where we have some fixed number of inputs and produce a fixed number of outputs. For example, we considered predicting house prices given a fixed set of features: square footage, number of bedrooms, number of bathrooms, and the transit time to downtown. We also discussed mapping from an image (of fixed dimension) to the predicted probabilities that it belongs to each among a fixed number of classes and predicting star ratings associated with purchases based on the user ID and product ID alone. In these cases, once our model is trained, after each test example is fed into our model, it is immediately forgotten. We assumed that successive observations were independent and thus there was no need to hold on to this context.

But how should we deal with video snippets? In this case, each snippet might consist of a different number of frames. And our guess of what is going on in each frame might be much stronger if we take into account the previous or succeeding frames. The same goes for language. For example, one popular deep learning problem is machine translation: the task of ingesting sentences in some source language and predicting their translations in another language.

Such problems also occur in medicine. We might want a model to monitor patients in the intensive care unit and to fire off alerts whenever their risk of dying in the next 24 hours exceeds some threshold. Here, we would not throw away everything that we know about the patient history every hour, because we might not want to make predictions based only on the most recent measurements.

These are instances of sequence learning. They require a model either to ingest sequences of inputs or to emit sequences of outputs (or both). Specifically, sequence-to-sequence learning considers problems where both inputs and outputs consist of variable-length sequences. Examples include machine translation and speech-to-text transcription. While it is impossible to consider all types of sequence transformations, the following special cases are worth mentioning.

Tagging and Parsing. This involves annotating a text sequence with attributes. Here, the inputs and outputs are aligned, i.e., they are of the same number and occur in a corresponding order. For instance, in part-of-speech (PoS) tagging, we annotate every word in a sentence with the corresponding part of speech, i.e., “noun” or “direct object”. Alternatively, we might want to know which groups of contiguous words refer to named entities, like people, places, or organizations. In the simplified example below, we indicate whether each word is part of a named entity (tagged as “Ent”).

Tom has dinner in Washington with Sally
Ent  -    -    -     Ent      -    Ent

Automatic Speech Recognition. With speech recognition, the input sequence is an audio recording of a speaker (Figure), and the output is a transcript of what the speaker said. The challenge is that there are many more audio frames (sound is typically sampled at 8kHz or 16kHz) than text, i.e., there is no 1:1 correspondence between audio and text, since thousands of samples may correspond to a single spoken word. These are sequence-to-sequence learning problems, where the output is much shorter than the input. Humans can recognize speech even from low-quality audio, getting computers to perform the same feat is a formidable challenge.

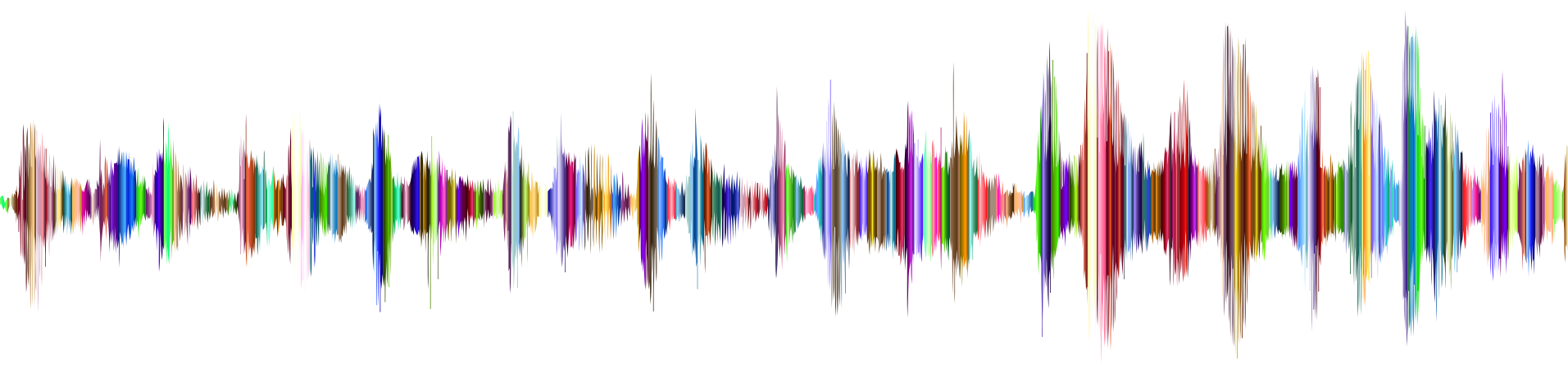

Figure: -D-e-e-p- L-ea-r-ni-ng- in an audio recording.

Text to Speech. This is the inverse of automatic speech recognition. Here, the input is text and the output is an audio file. In this case, the output is much longer than the input.

Machine Translation. Unlike the case of speech recognition, where corresponding inputs and outputs occur in the same order, in machine translation, unaligned data poses a new challenge. Here the input and output sequences can have different lengths, and the corresponding regions of the respective sequences may appear in a different order. Consider the following illustrative example of the peculiar tendency of Germans to place the verbs at the end of sentences:

German:           Haben Sie sich schon dieses grossartige Lehrwerk angeschaut?
English:          Have you already looked at this excellent textbook?
Wrong alignment:  Have you yourself already this excellent textbook looked at?

Many related problems pop up in other learning tasks. For instance, determining the order in which a user reads a webpage is a two-dimensional layout analysis problem. Dialogue problems exhibit all kinds of additional complications, where determining what to say next requires taking into account real-world knowledge and the prior state of the conversation across long temporal distances. Such topics are active areas of research.

Unsupervised and Self-Supervised Learning

The previous examples focused on supervised learning, where each training example includes features and a target label. Many datasets contain no such labels. Unsupervised learning seeks useful structure in these data without a predetermined prediction target, so the questions depend on the application. We will address unsupervised learning techniques in later chapters. The following questions illustrate the range of possibilities.

  • Can we find a small number of prototypes that accurately summarize the data? Given a set of photos, can we group them into landscape photos, pictures of dogs, babies, cats, and mountain peaks? Likewise, given a collection of users’ browsing activities, can we group them into users with similar behavior? This problem is typically known as clustering.
  • Can we find a small number of parameters that accurately capture the relevant properties of the data? The trajectories of a ball are well described by velocity, diameter, and mass of the ball. Tailors have developed a small number of parameters that describe human body shape fairly accurately for the purpose of fitting clothes. These problems are referred to as subspace estimation. If the dependence is linear, it is called principal component analysis.
  • Is there a representation of (arbitrarily structured) objects in Euclidean space such that symbolic properties can be well matched? This can be used to describe entities and their relations, such as “Rome” \(-\) “Italy” \(+\) “France” \(=\) “Paris”.
  • Is there a description of the root causes of much of the data that we observe? For instance, if we have demographic data about house prices, pollution, crime, location, education, and salaries, can we discover how they are related based on empirical data? The fields concerned with causality and probabilistic graphical models tackle such questions.
  • Another development in unsupervised learning is the advent of deep generative models. These models estimate the density of the data, either explicitly or implicitly. Once trained, we can use a generative model either to score examples according to how likely they are, or to sample synthetic examples from the learned distribution. Early deep learning breakthroughs in generative modeling came with the invention of variational autoencoders (Kingma and Welling 2014; Rezende et al. 2014) and continued with the development of generative adversarial networks (Goodfellow et al. 2014). More recent advances include normalizing flows (Dinh et al. 2014, 2017) and diffusion models (Sohl-Dickstein et al. 2015; Song and Ermon 2019; Ho et al. 2020; Song et al. 2021).

A further development in unsupervised learning has been the rise of self-supervised learning, techniques that leverage some aspect of the unlabeled data to provide supervision. For text, we can train models to “fill in the blanks” by predicting randomly masked words using their surrounding words (contexts) in large corpora without manual labels (Devlin et al. 2018). For images, we may train models to tell the relative position between two cropped regions of the same image (Doersch et al. 2015), to predict an occluded part of an image based on the remaining portions of the image, or to predict whether two examples are perturbed versions of the same underlying image. Self-supervised models often learn representations that are subsequently leveraged by fine-tuning the resulting models on some downstream task of interest.

Interacting with an Environment

So far, we have treated data as fixed and have not considered how a model’s outputs affect future observations. Standard supervised and unsupervised learning typically collect data first and train without further interaction with the environment. Because all the learning takes place after the algorithm is disconnected from the environment, this is sometimes called offline learning. For example, supervised learning assumes the simple interaction pattern depicted in Figure.

Figure: Collecting data for supervised learning from an environment.

Offline learning allows us to study pattern recognition in isolation, with no concern about complications arising from interactions with a dynamic environment. But this problem formulation is limiting. If you grew up reading Asimov’s Robot novels, then you probably picture artificially intelligent agents capable not only of making predictions, but also of taking actions in the world. An intelligent agent chooses actions as well as making predictions, and those actions affect the environment. If we want to train an intelligent agent, we must account for the way its actions might impact the future observations of the agent, and so offline learning is inappropriate.

Considering the interaction with an environment opens a whole set of new modeling questions. Examples include the following.

  • Does the environment remember what we did previously?
  • Does the environment want to help us, e.g., a user reading text into a speech recognizer?
  • Does the environment want to beat us, e.g., spammers adapting their emails to evade spam filters?
  • Does the environment have shifting dynamics? For example, would future data always resemble the past or would the patterns change over time, either naturally or in response to our automated tools?

These questions raise the problem of distribution shift, where training and test data are different. An example of this, that many of us may have met, is when taking exams written by a lecturer, while the homework was composed by their teaching assistants. Next, we briefly describe reinforcement learning, a rich framework for posing learning problems in which an agent interacts with an environment.

Reinforcement Learning

If you are interested in using machine learning to develop an agent that interacts with an environment and takes actions, then you are probably going to wind up focusing on reinforcement learning. This might include applications to robotics, to dialogue systems, and even to developing artificial intelligence (AI) for video games. Deep reinforcement learning, which applies deep learning to reinforcement learning problems, has surged in popularity. The breakthrough deep Q-network, that beat humans at Atari games using only the visual input (Mnih et al. 2015), and the AlphaGo program, which dethroned the world champion at the board game Go (Silver et al. 2016), are two prominent examples.

Reinforcement learning gives a very general statement of a problem in which an agent interacts with an environment over a series of time steps. At each time step, the agent receives some observation from the environment and must choose an action that is subsequently transmitted back to the environment via some mechanism (sometimes called an actuator), when, after each loop, the agent receives a reward from the environment. This process is illustrated in Figure. The agent then receives a subsequent observation, and chooses a subsequent action, and so on. The behavior of a reinforcement learning agent is governed by a policy. In brief, a policy is a function that maps from observations of the environment to actions. The goal of reinforcement learning is to produce good policies.

Figure: The interaction between reinforcement learning and an environment.

The reinforcement learning framework is general enough that supervised learning can be recast as reinforcement learning. Say we had a classification problem. We could create a reinforcement learning agent with one action corresponding to each class. We could then create an environment which gave a reward that was exactly equal to the loss function from the original supervised learning problem.

Further, reinforcement learning can also address many problems that supervised learning cannot. For example, in supervised learning, we always expect that the training input comes associated with the correct label. But in reinforcement learning, we do not assume that, for each observation the environment tells us the optimal action. In general, we receive a reward. Moreover, the environment may not even tell us which actions led to the reward.

Consider the game of chess. The only real reward signal comes at the end of the game when we either win, earning a reward of, say, \(1\), or when we lose, receiving a reward of, say, \(-1\). So reinforcement learners must deal with the credit assignment problem: determining which actions to credit or blame for an outcome. The same goes for an employee who gets a promotion on October 11. That promotion likely reflects a number of well-chosen actions over the previous year. Getting promoted in the future requires figuring out which actions along the way led to the earlier promotions.

Reinforcement learners may also have to deal with the problem of partial observability. That is, the current observation might not tell you everything about your current state. Say your cleaning robot found itself trapped in one of many identical closets in your house. Rescuing the robot involves inferring its precise location which might require considering earlier observations prior to it entering the closet.

Finally, at any given point, reinforcement learners might know of one good policy, but there might be many other better policies that the agent has never tried. The reinforcement learner must constantly choose whether to exploit the best (currently) known strategy as a policy, or to explore the space of strategies, potentially giving up some short-term reward in exchange for knowledge.

The general reinforcement learning setting includes all these complications. Actions affect subsequent observations. Rewards are only observed when they correspond to the chosen actions. The environment may be either fully or partially observed. Accounting for all this complexity at once may be asking too much. Moreover, not every practical problem exhibits all this complexity. As a result, researchers have studied a number of special cases of reinforcement learning problems.

When the environment is fully observed, we call the reinforcement learning problem a Markov decision process. When the state does not depend on the previous actions, we call it a contextual bandit problem. When there is no state, just a set of available actions with initially unknown rewards, we have the classic multi-armed bandit problem.

Roots

The preceding examples cover only a subset of the problems that machine learning can address. Deep learning provides tools for many of them. Although many deep learning methods are recent inventions, the core ideas behind learning from data have been studied for centuries. The effort to analyze observations and predict outcomes has shaped natural science and mathematics for centuries. Two examples are the Bernoulli distribution, named after Jacob Bernoulli (1655–1705), and the Gaussian distribution discovered by Carl Friedrich Gauss (1777–1855). Gauss invented, for instance, the least mean squares algorithm, which is still used today for a multitude of problems from insurance calculations to medical diagnostics. Such tools enhanced the experimental approach in the natural sciences—for instance, Ohm’s law relating current and voltage in a resistor is perfectly described by a linear model.

Even in the middle ages, mathematicians had a keen intuition of estimates. For instance, the geometry book of Jacob Köbel (1460–1533) illustrates averaging the length of 16 adult men’s feet to estimate the typical foot length in the population (Figure).

Figure: Estimating the length of a foot.

As a group of individuals exited a church, 16 adult men were asked to line up in a row and have their feet measured. The sum of these measurements was then divided by 16 to obtain an estimate for what now is called one foot. This “algorithm” was later improved to deal with misshapen feet; The two men with the shortest and longest feet were sent away, averaging only over the remainder. This is among the earliest examples of a trimmed mean estimate.

Statistics developed rapidly as larger collections of data became available. One of its pioneers, Ronald Fisher (1890–1962), contributed significantly to its theory and also its applications in genetics. Many of his algorithms (such as linear discriminant analysis) and concepts (such as the Fisher information matrix) still hold a prominent place in the foundations of modern statistics. Even his data resources had a lasting impact. The Iris dataset that Fisher released in 1936 is still sometimes used to demonstrate machine learning algorithms. Fisher was also a proponent of eugenics, which should remind us that the morally dubious use of data science has as long and enduring a history as its productive use in industry and the natural sciences.

Other influences for machine learning came from the information theory of Claude Shannon (1916–2001) and the theory of computation proposed by Alan Turing (1912–1954). Turing posed the question “can machines think?” in his famous paper Computing Machinery and Intelligence (Turing 1950). Describing what is now known as the Turing test, he proposed that a machine can be considered intelligent if it is difficult for a human evaluator to distinguish between the replies from a machine and those of a human, based purely on textual interactions.

Neuroscience and psychology provided further influences. Many scholars asked whether one could explain and possibly reverse engineer this capacity. One of the first biologically inspired algorithms was formulated by Donald Hebb (1904–1985). In his groundbreaking book The Organization of Behavior (Hebb 1949), he posited that neurons learn by positive reinforcement. This became known as the Hebbian learning rule. These ideas inspired later work, such as Rosenblatt’s perceptron learning algorithm, and laid the foundations of many stochastic gradient descent algorithms that underpin deep learning today: reinforce desirable behavior and diminish undesirable behavior to obtain good settings of the parameters in a neural network.

Biological inspiration is what gave neural networks their name. For over a century (dating back to the models of Alexander Bain, 1873, and James Sherrington, 1890), researchers have tried to assemble computational circuits that resemble networks of interacting neurons. Over time, the interpretation of biology has become less literal, but the name persisted. Most modern networks share a few principles: that can be found in most networks today:

  • The alternation of linear and nonlinear processing units, often referred to as layers.
  • The use of the chain rule (also known as backpropagation) for adjusting parameters in the entire network at once.

After initial rapid progress, research in neural networks languished from around 1995 until 2005. This was mainly due to two reasons. First, training a network is computationally very expensive. While random-access memory was plentiful at the end of the past century, computational power was scarce. Second, datasets were relatively small. In fact, Fisher’s Iris dataset from 1936 was still a popular tool for testing the efficacy of algorithms. The MNIST dataset with its 60,000 handwritten digits was considered huge.

Given the scarcity of data and computation, strong statistical tools such as kernel methods, decision trees, and graphical models proved empirically superior in many applications. Moreover, unlike neural networks, they did not require weeks to train and provided predictable results with strong theoretical guarantees.

The Road to Deep Learning

Much of this changed with the availability of massive amounts of data, thanks to the World Wide Web, the advent of companies serving hundreds of millions of users online, a dissemination of low-cost, high-quality sensors, inexpensive data storage (Kryder’s law), and cheap computation (Moore’s law). In particular, the landscape of computation in deep learning was revolutionized by advances in GPUs that were originally engineered for computer gaming. Suddenly algorithms and models that seemed computationally infeasible were within reach. The trend is summarized in Table 4.1.

Table 4.1: Dataset vs. computer memory and computational power
Decade Dataset Memory Floating point calculations per second
1970 100 (Iris) 1 KB 100 KF (Intel 8080)
1980 1 K (house prices in Boston) 100 KB 1 MF (Intel 80186)
1990 10 K (optical character recognition) 10 MB 10 MF (Intel 80486)
2000 10 M (web pages) 100 MB 1 GF (Intel Core)
2010 10 G (advertising) 1 GB 1 TF (NVIDIA C2050)
2020 1 T (social network) 100 GB 1 PF (NVIDIA DGX-2)

Random-access memory has not kept pace with the growth in data. At the same time, increases in computational power have outpaced the growth in datasets. This means that statistical models need to become more memory efficient, and so they are free to spend more computer cycles optimizing parameters, thanks to the increased compute budget. Consequently, the sweet spot in machine learning and statistics moved from (generalized) linear models and kernel methods to deep neural networks. This is also one of the reasons why many of the mainstays of deep learning, such as multilayer perceptrons (McCulloch and Pitts 1943), convolutional neural networks (LeCun et al. 1998), long short-term memory (Hochreiter and Schmidhuber 1997), and Q-Learning (Watkins and Dayan 1992), were essentially “rediscovered” in the past decade, after lying comparatively dormant for considerable time.

The recent progress in statistical models, applications, and algorithms has sometimes been likened to the Cambrian explosion: a moment of rapid progress in the evolution of species. The progress did not result from applying additional resources to old algorithms alone. The following list gives several important developments.

  • Novel methods for capacity control, such as dropout (Srivastava et al. 2014), have helped to mitigate overfitting. Here, noise is injected (Bishop 1995) throughout the neural network during training.
  • Attention mechanisms solved a second problem that had plagued statistics for over a century: how to increase the memory and complexity of a system without increasing the number of learnable parameters. A learnable pointer structure provided an effective solution (Bahdanau et al. 2015). Rather than having to remember an entire text sequence, e.g., for machine translation in a fixed-dimensional representation, all that needed to be stored was a pointer to the intermediate state of the translation process. This allowed for significantly increased accuracy for long sequences, since the model no longer needed to remember the entire sequence before commencing the generation of a new one.
  • Built solely on attention mechanisms, the Transformer architecture (Vaswani et al. 2017) has demonstrated superior scaling behavior: it performs better with an increase in dataset size, model size, and amount of training compute (Kaplan et al. 2020). This architecture has demonstrated compelling success in a wide range of areas, such as natural language processing (Devlin et al. 2018; Brown et al. 2020), computer vision (Dosovitskiy et al. 2021; Liu et al. 2021), speech recognition (Gulati et al. 2020), reinforcement learning (Chen et al. 2021), and graph neural networks (Dwivedi and Bresson 2020). For example, a single Transformer pretrained on modalities as diverse as text, images, joint torques, and button presses can play Atari, caption images, chat, and control a robot (Reed et al. 2022).
  • Modeling probabilities of text sequences, language models can predict text given other text. Scaling up the data, model, and compute has unlocked a growing number of capabilities of language models to perform desired tasks via human-like text generation based on input text (Brown et al. 2020; Rae et al. 2021; Hoffmann et al. 2022; Chowdhery et al. 2022; OpenAI 2023; Anil et al. 2023; Touvron et al. 2023a, 2023b). For instance, aligning language models with human intent (Ouyang et al. 2022), OpenAI’s ChatGPT allows users to interact with it in a conversational way to solve problems, such as code debugging and creative writing.
  • Multi-stage designs, e.g., via the memory networks (Sukhbaatar et al. 2015) and the neural programmer-interpreter (Reed and De Freitas 2015) permitted statistical modelers to describe iterative approaches to reasoning. These tools allow for an internal state of the deep neural network to be modified repeatedly, thus carrying out subsequent steps in a chain of reasoning, just as a processor can modify memory for a computation.
  • A key development in deep generative modeling was the invention of generative adversarial networks (Goodfellow et al. 2014). Traditionally, statistical methods for density estimation and generative models focused on finding proper probability distributions and (often approximate) algorithms for sampling from them. As a result, these algorithms were largely limited by the lack of flexibility inherent in the statistical models. The central innovation in generative adversarial networks was to replace the sampler by an arbitrary algorithm with differentiable parameters. These are then adjusted in such a way that the discriminator (effectively a two-sample test) cannot distinguish fake from real data. Through the ability to use arbitrary algorithms to generate data, density estimation was opened up to a wide variety of techniques. Examples of galloping zebras (Zhu et al. 2017) and of fake celebrity faces (Karras et al. 2018) are each testimony to this progress. Even amateur doodlers can produce photorealistic images from sketches describing the layout of a scene (Park et al. 2019).
  • Furthermore, while the diffusion process gradually adds random noise to data samples, diffusion models (Sohl-Dickstein et al. 2015; Ho et al. 2020) learn the denoising process to gradually construct data samples from random noise, reversing the diffusion process. They have started to replace generative adversarial networks in more recent deep generative models, such as in DALL-E 2 (Ramesh et al. 2022) and Imagen (Saharia et al. 2022) for creative art and image generation based on text descriptions.
  • In many cases, a single GPU is insufficient for processing the large amounts of data available for training. Over the past decade the ability to build parallel and distributed training algorithms has improved significantly. One of the key challenges in designing scalable algorithms is that a standard method for deep learning optimization, stochastic gradient descent, relies on relatively small minibatches of data to be processed. At the same time, small batches limit the efficiency of GPUs. Hence, training on 1,024 GPUs with a minibatch size of, say, 32 images per batch amounts to an aggregate minibatch of about 32,000 images. Work, first by Li (2017) and subsequently by You et al. (2017) and Jia et al. (2018) pushed the size up to 64,000 observations, reducing training time for the ResNet-50 model on the ImageNet dataset to less than 7 minutes. By comparison, training times were initially of the order of days.
  • The ability to parallelize computation has also contributed to progress in reinforcement learning. This has led to significant progress in computers achieving superhuman performance on tasks like Go, Atari games, Starcraft, and in physics simulations (e.g., using MuJoCo) where environment simulators are available. See, e.g., Silver et al. (2016) for a description of such achievements in AlphaGo. In a nutshell, reinforcement learning works best if plenty of (state, action, reward) tuples are available. Simulation provides such an avenue.
  • Deep learning frameworks have played an important role in disseminating ideas. The first generation of open-source frameworks for neural network modeling consisted of Caffe, Torch, and Theano. Many seminal papers were written using these tools. These have now been superseded by TensorFlow (often used via its high-level API Keras), CNTK, Caffe 2, and Apache MXNet. The third generation of frameworks consists of so-called imperative tools for deep learning, a trend that was arguably ignited by Chainer, which used a syntax similar to Python NumPy to describe models. This idea was adopted by both PyTorch, the Gluon API of MXNet, and JAX.

The division of labor between systems researchers building tools and statistical modelers building neural networks has simplified implementation. For instance, training a linear logistic regression model used to be a nontrivial homework problem, worthy to give to new machine learning Ph.D. students at Carnegie Mellon University in 2014. By now, this task can be accomplished with under 10 lines of code, putting it firmly within the reach of any programmer.

Success Stories

Artificial intelligence has a long history of delivering results that would be difficult to accomplish otherwise. For instance, mail sorting systems using optical character recognition have been deployed since the 1990s. This is, after all, the source of the famous MNIST dataset of handwritten digits. The same applies to reading checks for bank deposits and scoring creditworthiness of applicants. Financial transactions are checked for fraud automatically. This forms the backbone of many e-commerce payment systems, such as PayPal, Stripe, AliPay, WeChat, Apple, Visa, and MasterCard. Computer programs for chess have been competitive for decades. Machine learning feeds search, recommendation, personalization, and ranking on the Internet. Machine learning is therefore pervasive, although often invisible to users.

AI received broader public attention as systems addressed previously intractable, consumer-facing problems. Deep learning contributed to many of these advances.

  • Intelligent assistants, such as Apple’s Siri, Amazon’s Alexa, and Google’s assistant, are able to respond to spoken requests with a reasonable degree of accuracy. This includes routine tasks, such as turning on lights, and more complex tasks, such as arranging barber’s appointments and offering phone support dialog. This is likely the most noticeable sign that AI is affecting our lives.
  • A key ingredient in digital assistants is their ability to recognize speech accurately. The accuracy of such systems has gradually increased to the point of achieving parity with humans for certain applications (Xiong et al. 2018).
  • Object recognition has likewise come a long way. Identifying the object in a picture was a fairly challenging task in 2010. On the ImageNet benchmark researchers from NEC Labs and University of Illinois at Urbana-Champaign achieved a top-five error rate of 28% (Lin et al. 2010). By 2017, this error rate was reduced to 2.25% (Hu et al. 2018). Similarly, stunning results have been achieved for identifying birdsong and for diagnosing skin cancer.
  • Prowess in games used to provide a measuring stick for human ability. Starting from TD-Gammon, a program for playing backgammon using temporal difference reinforcement learning, algorithmic and computational progress has led to algorithms for a wide range of applications. Compared with backgammon, chess has a much more complex state space and set of actions. DeepBlue beat Garry Kasparov using massive parallelism, special-purpose hardware and efficient search through the game tree (Campbell et al. 2002). Go is more difficult still, due to its huge state space. AlphaGo reached human parity in 2015, using deep learning combined with Monte Carlo tree sampling (Silver et al. 2016). The challenge in Poker was that the state space is large and only partially observed (we do not know the opponents’ cards). Libratus exceeded human performance in Poker using efficiently structured strategies (Brown and Sandholm 2017).
  • Another indication of progress in AI is the advent of self-driving vehicles. While full autonomy is not yet within reach, excellent progress has been made in this direction, with companies such as Tesla, NVIDIA, and Waymo shipping products that enable partial autonomy. What makes full autonomy so challenging is that proper driving requires the ability to perceive, to reason and to incorporate rules into a system. At present, deep learning is used primarily in the visual aspect of these problems. The rest is heavily tuned by engineers.

Other applications include robotics, logistics, computational biology, particle physics, and astronomy. Machine learning has become a standard tool for engineers and scientists in these fields.

Popular discussions often focus on a hypothetical AI singularity. More immediate concerns arise because automated systems already affect people’s lives: creditworthiness is assessed automatically, autopilots mostly navigate vehicles, decisions about whether to grant bail use statistical data as input. More frivolously, we can ask Alexa to switch on the coffee machine.

Current AI systems are engineered, trained, and deployed for specified objectives. Their behavior arises from rules, heuristics, statistical models, and training data. These systems do not constitute artificial general intelligence capable of autonomously redesigning themselves to solve arbitrary tasks.

A much more pressing concern is how AI is being used in our daily lives. It is likely that many routine tasks, currently fulfilled by humans, can and will be automated. Farm robots will likely reduce the costs for organic farmers but they will also automate harvesting operations. This phase of automation may have profound consequences for large parts of society because routine work provides substantial employment in many countries. Furthermore, statistical models, when applied without care, can lead to racial, gender, or age bias and raise reasonable concerns about procedural fairness if automated to drive consequential decisions. It is important to ensure that these algorithms are used with care. These present-day effects warrant direct attention.

The Essence of Deep Learning

Thus far, we have talked in broad terms about machine learning. Deep learning is the subset of machine learning concerned with models based on many-layered neural networks. It is deep in precisely the sense that its models learn many layers of transformations. This definition encompasses a broad range of models, techniques, problem formulations, and applications. Many intuitions have been developed to explain the benefits of depth. Arguably, all machine learning has many layers of computation, the first consisting of feature processing steps. What differentiates deep learning is that the operations learned at each of the many layers of representations are learned jointly from data.

The problems that we have discussed so far, such as learning from the raw audio signal, the raw pixel values of images, or mapping between sentences of arbitrary lengths and their counterparts in foreign languages, are those where deep learning excels and traditional methods falter. It turns out that these many-layered models are capable of addressing low-level perceptual data in a way that previous tools could not. Arguably the most significant commonality in deep learning methods is end-to-end training. That is, rather than assembling a system based on components that are individually tuned, one builds the system and then tunes their performance jointly. For instance, in computer vision scientists used to separate the process of feature engineering from the process of building machine learning models. The Canny edge detector (Canny 1987) and Lowe’s SIFT feature extractor (Lowe 2004) reigned supreme for over a decade as algorithms for mapping images into feature vectors. In traditional pipelines, applying machine learning to these problems required manually engineered methods of transforming the data into some form amenable to shallow models. Automated optimization can evaluate far more alternatives than manual feature design. When deep learning took over, these feature extractors were replaced by automatically tuned filters that yielded superior accuracy.

Thus, one key advantage of deep learning is that it replaces not only the shallow models at the end of traditional learning pipelines, but also the labor-intensive process of feature engineering. Moreover, by replacing much of the domain-specific preprocessing, deep learning has eliminated many of the boundaries that previously separated computer vision, speech recognition, natural language processing, medical informatics, and other application areas, thereby offering a unified set of tools for tackling diverse problems.

Beyond end-to-end training, we are experiencing a transition from parametric statistical descriptions to fully nonparametric models. When data is scarce, one needs to rely on simplifying assumptions about reality in order to obtain useful models. When data is abundant, these can be replaced by nonparametric models that better fit the data. To some extent, this mirrors the progress that physics experienced in the middle of the previous century with the availability of computers. Rather than solving by hand parametric approximations of how electrons behave, one can now resort to numerical simulations of the associated partial differential equations. This has led to much more accurate models, albeit often at the expense of interpretation.

Another difference from previous work is the acceptance of suboptimal solutions, dealing with nonconvex nonlinear optimization problems, and the willingness to try things before proving them. This new-found empiricism in dealing with statistical problems, combined with a rapid influx of talent has led to rapid progress in the development of practical algorithms, albeit in many cases at the expense of modifying and re-inventing tools that existed for decades.

The deep learning community routinely shares libraries, statistical models, and trained networks across academic and corporate boundaries. In the same spirit, the notebooks in this book are freely available for distribution and use.

Summary

Machine learning studies how computer systems can leverage experience (often data) to improve performance at specific tasks. It combines ideas from statistics, data mining, and optimization. Often, it is used as a means of implementing AI solutions. As a class of machine learning, representational learning focuses on how to automatically find the appropriate way to represent data. Considered as multi-level representation learning through learning many layers of transformations, deep learning replaces not only the shallow models at the end of traditional machine learning pipelines, but also the labor-intensive process of feature engineering. Much of the recent progress in deep learning has been triggered by an abundance of data arising from cheap sensors and Internet-scale applications, and by significant progress in computation, mostly through GPUs. Furthermore, the availability of efficient deep learning frameworks has made design and implementation of whole system optimization significantly easier, and this is a key component in obtaining high performance.

Exercises

  1. Which parts of code that you currently write could be “learned”, i.e., improved by determining design choices automatically from data? Does your code include heuristic design choices? What data might you need to learn the desired behavior?
  2. Which problems that you encounter have many examples of successful solutions but no explicit procedure for automating them? Which might be suitable for deep learning?
  3. Describe the relationships between algorithms, data, and computation. How do characteristics of the data and the current available computational resources influence the appropriateness of various algorithms?
  4. Name some settings where end-to-end training is not currently the default approach but where it might be useful.

Discussions
