Flow matching and its relation to diffusion
paths and velocity fields · conditional flow matching · one dictionary for scores and velocities

Prescribe the Path, Learn the Velocity

\frac{d}{dt} \mathbf{x}_t = \mathbf{u}_t(\mathbf{x}_t),\qquad \mathbf{x}_0 \sim \mathcal{N}(\mathbf{0}, I),\qquad \mathbf{x}_1 \sim p_{\textrm{data}}

  • a velocity field generates the path when mass moves with it (continuity equation);
  • sampling is numerical integration, noise to data;
  • the marginal field is unknown, like the data score.

Conditional Flow Matching on Straight Segments

\mathbf{x}_t = (1 - t)\, \mathbf{x}_0 + t\, \mathbf{x}_1,\qquad \mathcal{L}_{\textrm{CFM}} = \mathbb{E}\, \big\| \mathbf{v}_{\boldsymbol{\theta}}(\mathbf{x}_t, t) - (\mathbf{x}_1 - \mathbf{x}_0) \big\|^2

  • the marginal velocity is the posterior mean of the segment direction;
  • regressing onto it has the same minimizer (the regression lemma again);
  • draw noise, draw data, interpolate, regress.

Two Gaussian Paths from Noise to Data

Same endpoints, different geometry: diffusion moves along the circle \alpha^2 + \sigma^2 = 1, flow matching along the line \alpha + \sigma = 1.

The Score–Velocity Dictionary

\mathbf{u}_t(\mathbf{x}) = \frac{\dot{\alpha}_t}{\alpha_t}\, \mathbf{x} - \Big( \sigma_t \dot{\sigma}_t - \sigma_t^2\, \frac{\dot{\alpha}_t}{\alpha_t} \Big) \nabla_{\mathbf{x}} \log p_t(\mathbf{x})

  • both sides are affine in the posterior mean \hat{\mathbf{x}}_1 (Tweedie);
  • a trained noise predictor is therefore a velocity field: DDIM integrates it;
  • linear path: \mathbf{u}_t = \mathbf{x}/t + \tfrac{1-t}{t}\, \nabla \log p_t.

The Dictionary, Checked on the Mixture

def true_velocity(x, t):  # the linear-path velocity, from the closed-form score
    return x / t + (1 - t) / t * mix.score(x, scale=t, sigma=1 - t)

print(f'{"t":>4} {"E||v - u||^2":>13} {"E||u||^2":>9}')
with torch.no_grad():
    for t in (0.2, 0.5, 0.8, 0.95):
        x_t = (1 - t) * torch.randn_like(test) + t * test
        u = true_velocity(x_t, t)
        v = velocity(x_t, torch.full((len(test),), t))
        print(f'{t:>4} {((v - u) ** 2).sum(1).mean():>13.3f} {(u ** 2).sum(1).mean():>9.3f}')
   t  E||v - u||^2  E||u||^2
 0.2         0.108     1.079
 0.5         0.205     7.803
 0.8         0.045     8.052
0.95         0.103     8.352

Learned velocity against the velocity computed from the closed-form score: a few percent apart in mean square for t \geq 0.5, with no score learned and no velocity in the formula.

Euler Steps and Curvature

@torch.no_grad()
def euler_sample(field, x, steps, record=False):
    trajectory = [x]
    for k in range(steps):
        x = x + field(x, torch.full((len(x),), k / steps)) / steps
        trajectory.append(x)
    return (x, torch.stack(trajectory)) if record else x

def summarize(x):
    d2 = ((x[:, None, :] - mix.means[None]) ** 2).sum(-1)
    weights = [round(w, 3) for w in
               (torch.bincount(d2.argmin(1), minlength=3) / len(x)).tolist()]
    nearest = d2.min(1).values
    inside = nearest < (3 * mix.std) ** 2
    return (f'mode weights {weights}, spread {nearest[inside].mean():.2f}, '
            f'stray {1 - inside.float().mean():.3f}')

def curvature(trajectory):  # path length over chord length, minus one
    length = (trajectory[1:] - trajectory[:-1]).norm(dim=2).sum(0)
    chord = (trajectory[-1] - trajectory[0]).norm(dim=1)
    return (length / chord - 1).mean()

torch.manual_seed(3)
x0 = torch.randn(2000, 2)
print(f'target (2000 samples of the mixture): {summarize(data)}')
for steps in (100, 10, 4, 2):
    print(f'learned field, {steps:>3d} Euler steps: {summarize(euler_sample(velocity, x0, steps))}')
exact = lambda x, t: true_velocity(x, max(t[0].item(), 1e-3))  # avoid t = 0
print(f'exact field,   100 Euler steps: {summarize(euler_sample(exact, x0, 100))}')
_, path = euler_sample(velocity, x0, 100, record=True)
print(f'curvature of the learned flow: {curvature(path):.3f}')
target (2000 samples of the mixture): mode weights [0.5, 0.317, 0.183], spread 0.49, stray 0.012
learned field, 100 Euler steps: mode weights [0.52, 0.322, 0.159], spread 0.50, stray 0.036
learned field,  10 Euler steps: mode weights [0.535, 0.317, 0.148], spread 0.48, stray 0.072
learned field,   4 Euler steps: mode weights [0.596, 0.294, 0.11], spread 0.49, stray 0.175
learned field,   2 Euler steps: mode weights [0.753, 0.214, 0.032], spread 0.76, stray 0.449
exact field,   100 Euler steps: mode weights [0.518, 0.292, 0.19], spread 0.48, stray 0.015
curvature of the learned flow: 0.219

A hundred steps reproduce the mixture; two do not. The marginal flow is curved even though every conditional segment is straight.

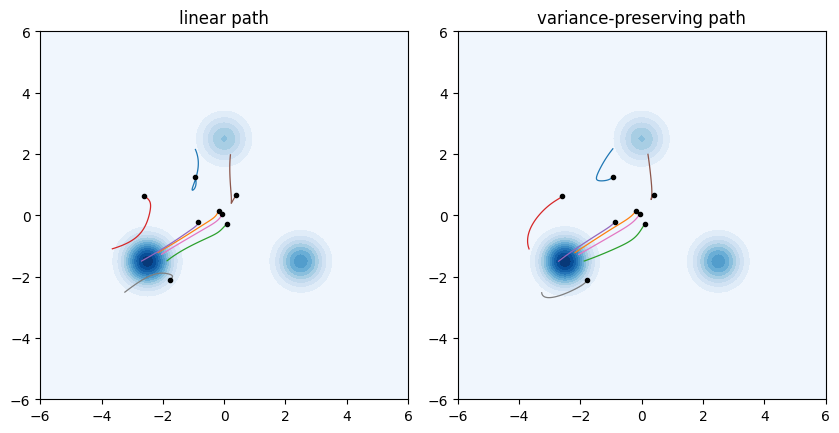

Two Routes to the Same Distribution

curvature of the exact flow, linear path: 0.213
curvature of the exact flow, variance-preserving path: 0.105

The exact flows of the linear and the variance-preserving path: both curved, the circle less so here. A straight conditional path does not make the marginal flow straight; reflow straightens it by changing the coupling.

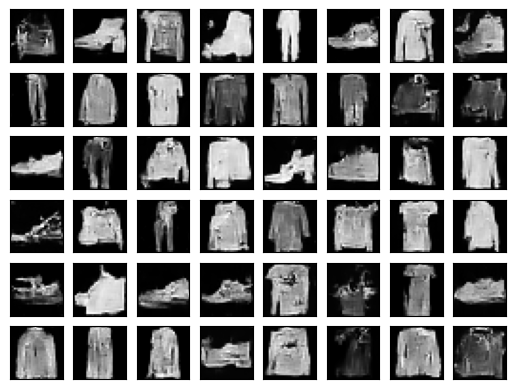

The Same U-Net, a Velocity Target

final training loss: 0.280

Interpolate instead of noising, regress onto \mathbf{x}_1 - \mathbf{x}_0, integrate with fifty steps.

Recap

  • Flow matching learns the velocity of a prescribed noise-to-data path; conditional flow matching makes it a regression on straight segments.
  • For Gaussian paths, score and velocity are affine in the same posterior mean: diffusion is flow matching on the variance-preserving path.
  • What differs: the path’s geometry, the target’s conditioning and weighting, the sampler.
  • Next: the same ideas for discrete data.
