Noise-Conditional Score Networks and Annealed Langevin Dynamics

Dive into Deep Learning · §17.6

Noise-conditional score networks and annealed Langevin dynamics
a ladder of noise levels · one network for all of them · sample coarse to fine

A Ladder of Noise Levels Removes the Trade-off

Coarse levels have no valleys and reliable scores wherever the noisy data reach; fine levels match the data. Use all of them, in order.

One Network, Conditioned on the Level

\mathcal{L}(\boldsymbol{\theta}) = \frac{1}{L} \sum_{i=1}^{L} \sigma_i^2\; \mathbb{E}\Big[ \tfrac{1}{2} \big\| \mathbf{s}_{\boldsymbol{\theta}}(\mathbf{x} + \sigma_i \boldsymbol{\epsilon}, \sigma_i) + \boldsymbol{\epsilon} / \sigma_i \big\|^2 \Big]

the \sigma^2 weight gives every level a term of comparable size;
with \mathbf{s}_{\boldsymbol{\theta}} = \mathbf{f}_{\boldsymbol{\theta}} / \sigma, the network predicts -\boldsymbol{\epsilon};
the fit is best at the coarse levels and worst at the finest.

print(f'{"sigma":>6} {"Fisher divergence":>18} {"0.5 E||score||^2":>17}')
for sigma in sigmas[::3]:
    key, subkey = jax.random.split(key)
    x_noisy = test + sigma * jax.random.normal(subkey, test.shape)
    true = mix.score(x_noisy, sigma=float(sigma))
    s = score(x_noisy, jnp.full((len(test),), sigma))
    print(f'{sigma:>6.3f} {0.5 * ((s - true) ** 2).sum(1).mean():>18.4f} '
          f'{0.5 * (true ** 2).sum(1).mean():>17.3f}')

 sigma  Fisher divergence  0.5 E||score||^2
 3.000             0.0017             0.076
 0.766             0.0296             1.122
 0.196             0.1071             3.430
 0.050             2.4424             3.950

Annealed Langevin Dynamics

\alpha_i = \epsilon\, \frac{\sigma_i^2}{\sigma_L^2}, \qquad \mathbf{x} \leftarrow \mathbf{x} + \frac{\alpha_i}{2}\, \mathbf{s}_{\boldsymbol{\theta}}(\mathbf{x}, \sigma_i) + \sqrt{\alpha_i}\, \boldsymbol{\xi}

For i = 1, \ldots, L, a fixed number of steps each, every level starting where the last one stopped. The step size tracks the score’s scale; the injected noise shrinks with the level.

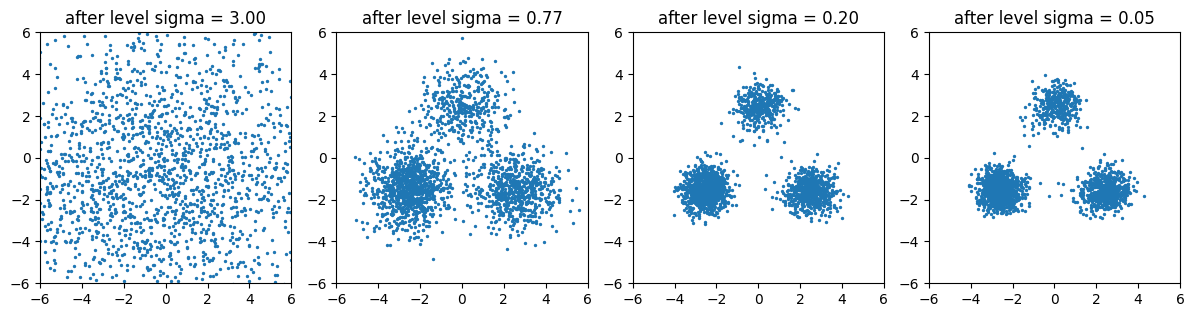

The Ladder Recovers What One Level Could Not

@nnx.jit
def annealed_step(score, x, key, sigma, alpha):
    sigma_vec = jnp.full((len(x),), sigma)
    return (x + 0.5 * alpha * score(x, sigma_vec)
            + alpha ** 0.5 * jax.random.normal(key, x.shape))

def annealed_langevin(score, x, key, sigmas, steps_per_level=100, scale=0.1):
    """Langevin dynamics at each level of the ladder, coarse to fine."""
    for sigma in sigmas:
        alpha = scale * sigma ** 2  # alpha_i = eps * sigma_i^2 / sigma_L^2
        for _ in range(steps_per_level):
            key, subkey = jax.random.split(key)
            x = annealed_step(score, x, subkey, sigma, alpha)
    return x

def summarize(x):
    """Mode weights, within-mode spread, and the fraction of stray chains."""
    d2 = ((x[:, None, :] - mix.means[None]) ** 2).sum(-1)
    weights = [round(float(w), 3) for w in
               jnp.bincount(d2.argmin(1), length=3) / len(x)]
    nearest = d2.min(1)
    inside = nearest < (3 * mix.std) ** 2
    return (f'mode weights {weights}, spread {nearest[inside].mean():.2f}, '
            f'stray {1 - inside.mean():.3f}')

key, subkey = jax.random.split(key)
x_init = 3 * jax.random.normal(subkey, (2000, 2))
print(f'target (2000 samples of the mixture): {summarize(data)}')
for steps in (20, 100):
    key, subkey = jax.random.split(key)
    x = annealed_langevin(score, x_init, subkey, sigmas, steps_per_level=steps)
    print(f'annealed, {steps:>3d} steps per level: {summarize(x)}')
key, subkey = jax.random.split(key)
x_single = annealed_langevin(score, x_init, subkey, sigmas[-1:],
                             steps_per_level=1000)
print(f'finest level only, 1000 steps:  {summarize(x_single)}')

target (2000 samples of the mixture): mode weights [0.517, 0.296, 0.187], spread 0.46, stray 0.011
annealed,  20 steps per level: mode weights [0.439, 0.317, 0.245], spread 0.73, stray 0.137
annealed, 100 steps per level: mode weights [0.487, 0.333, 0.18], spread 0.54, stray 0.023
finest level only, 1000 steps:  mode weights [0.385, 0.281, 0.335], spread 1.06, stray 0.491

Same budget of a thousand evaluations: the annealed chain recovers the weights with a slightly wider spread and few strays; the finest level alone moves the chains only part of the way, because its steps are 3600 times smaller than those of the coarsest level.

A U-Net Approximates the Scores at Every Level

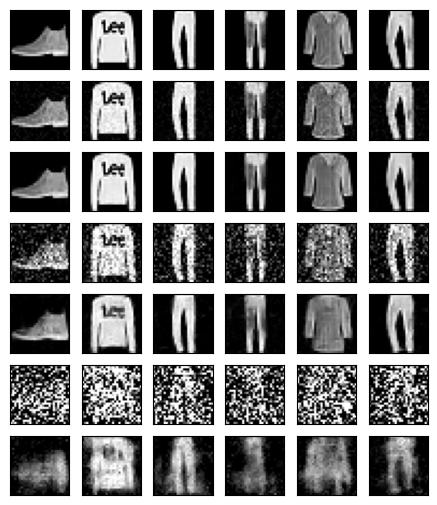

One Network Denoises at Three Levels

sigma = 0.09: per-pixel squared error noisy 0.009, denoised 0.003
sigma = 0.43: per-pixel squared error noisy 0.186, denoised 0.025
sigma = 2.00: per-pixel squared error noisy 4.001, denoised 0.158

Fine level: the original. Middle: the posterior mean. Coarse: a blurred silhouette, the layout without the detail. Layout, shape, detail.

Recap

A noise-conditional network learns \nabla \log p_{\sigma_i} for a whole ladder, by noise prediction.
Annealed Langevin dynamics samples coarse to fine; each level starts from the previous level’s samples, likely where its score is well estimated.
Conditioning: add a classifier gradient to the score (Bayes’ rule).
Remaining costs: a long chain, no tractable likelihood, a ladder rather than a process. Next: diffusion models.
